ZYA
●
●
●
●
●
●
●
ZYA
7'55" to 15'42"
Overall Length
4'33" to 6'23"
Overall Width
83.78 to 211.64lbs
Net Weight
2 to 8
Maximum People
/
Fuel Tank
/
Max HP / KW
INTRODUCE

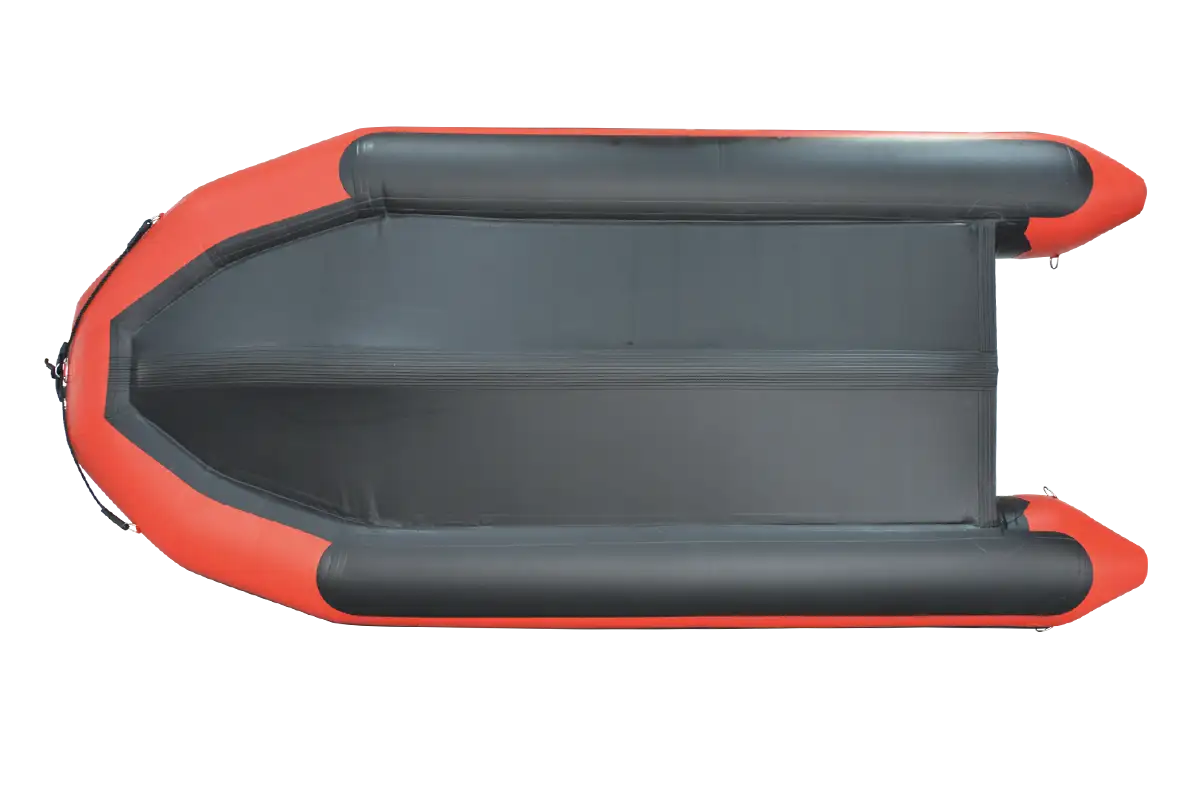

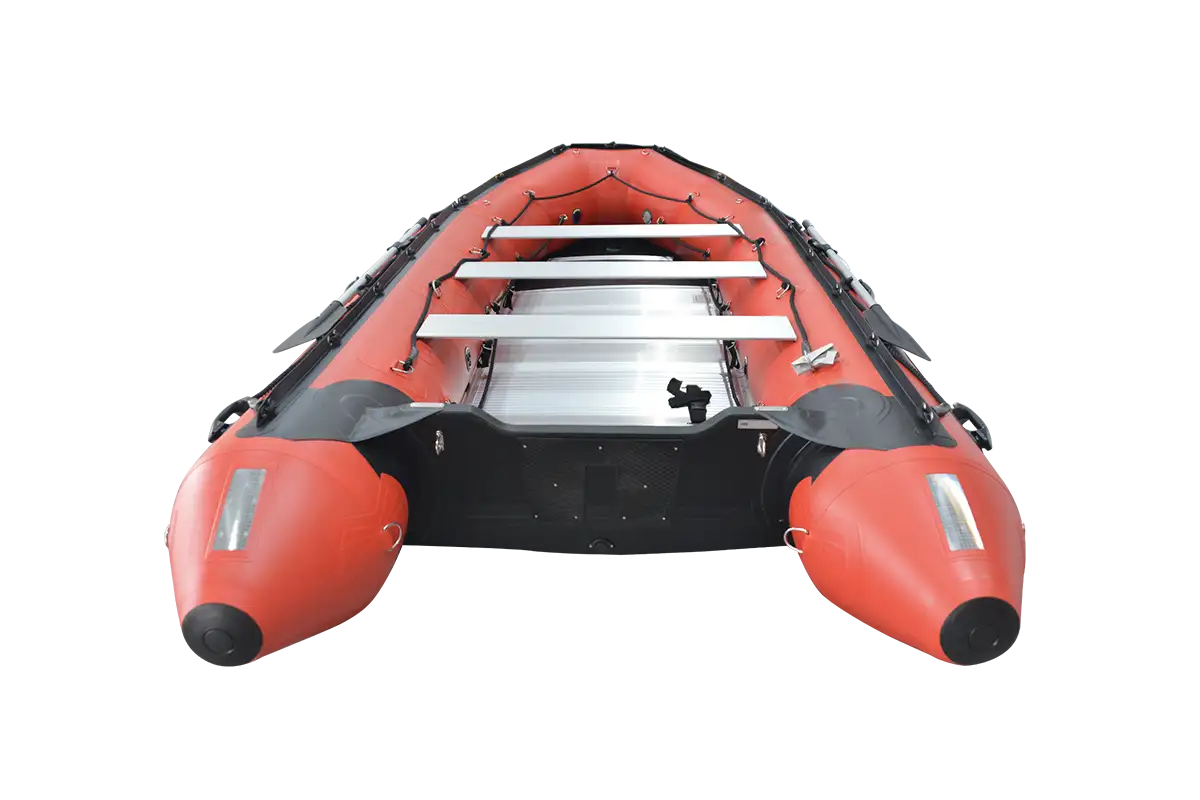

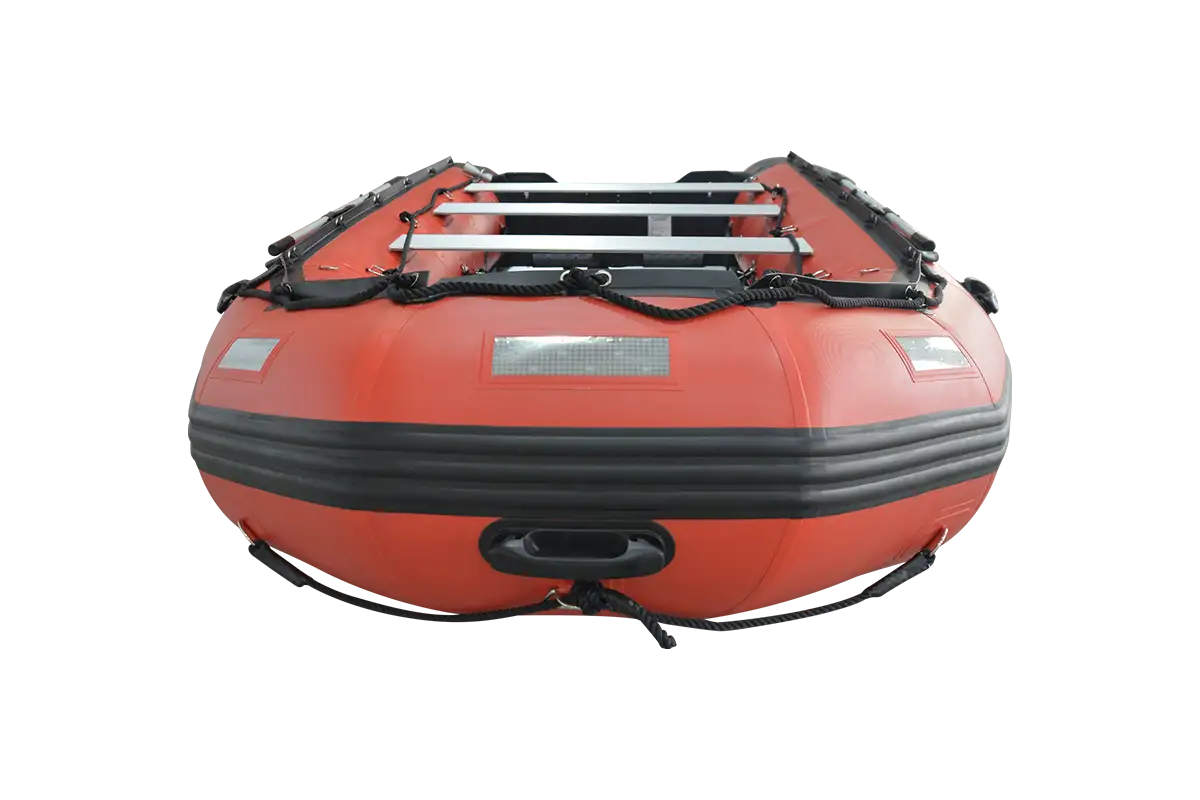

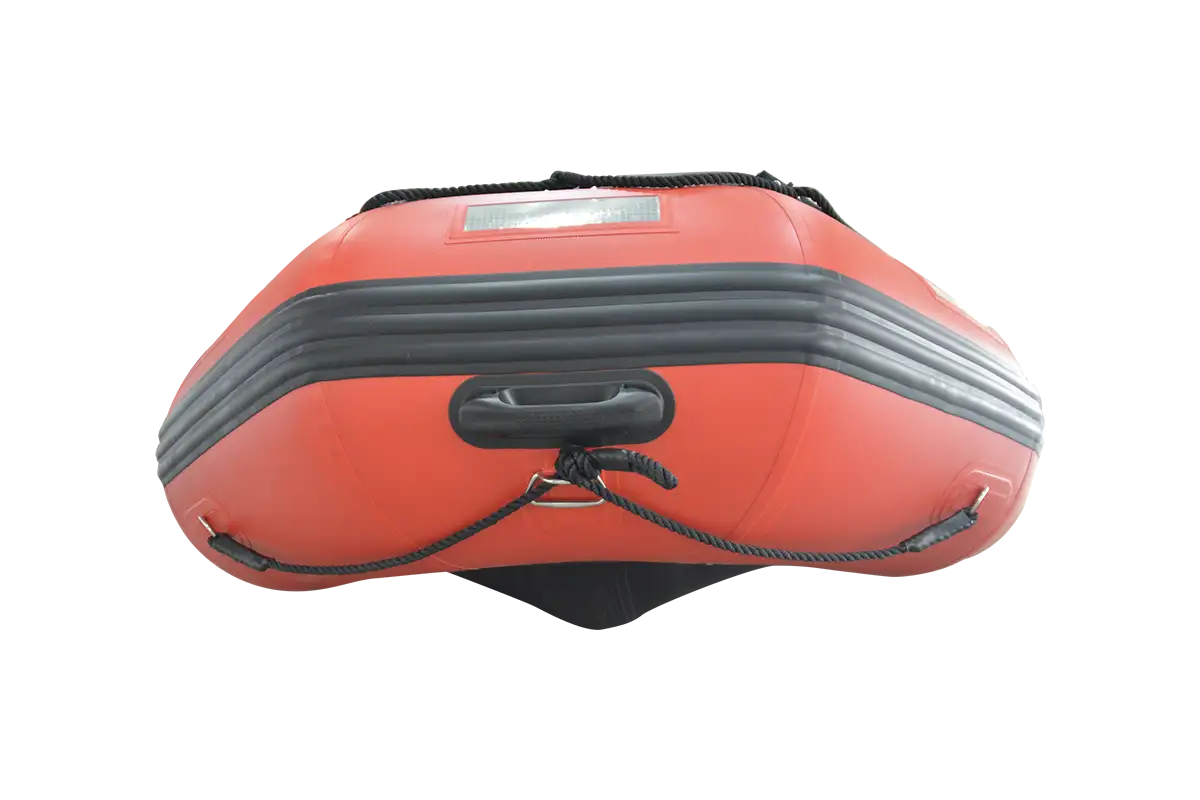

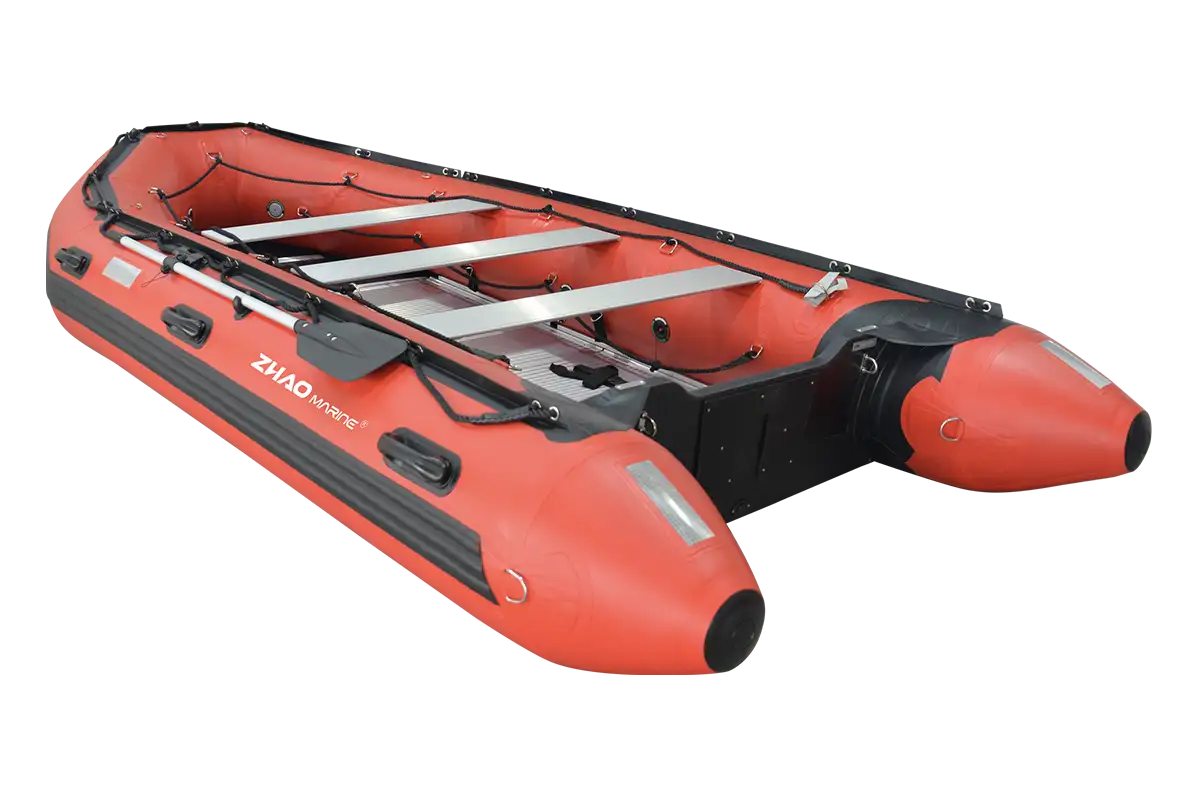

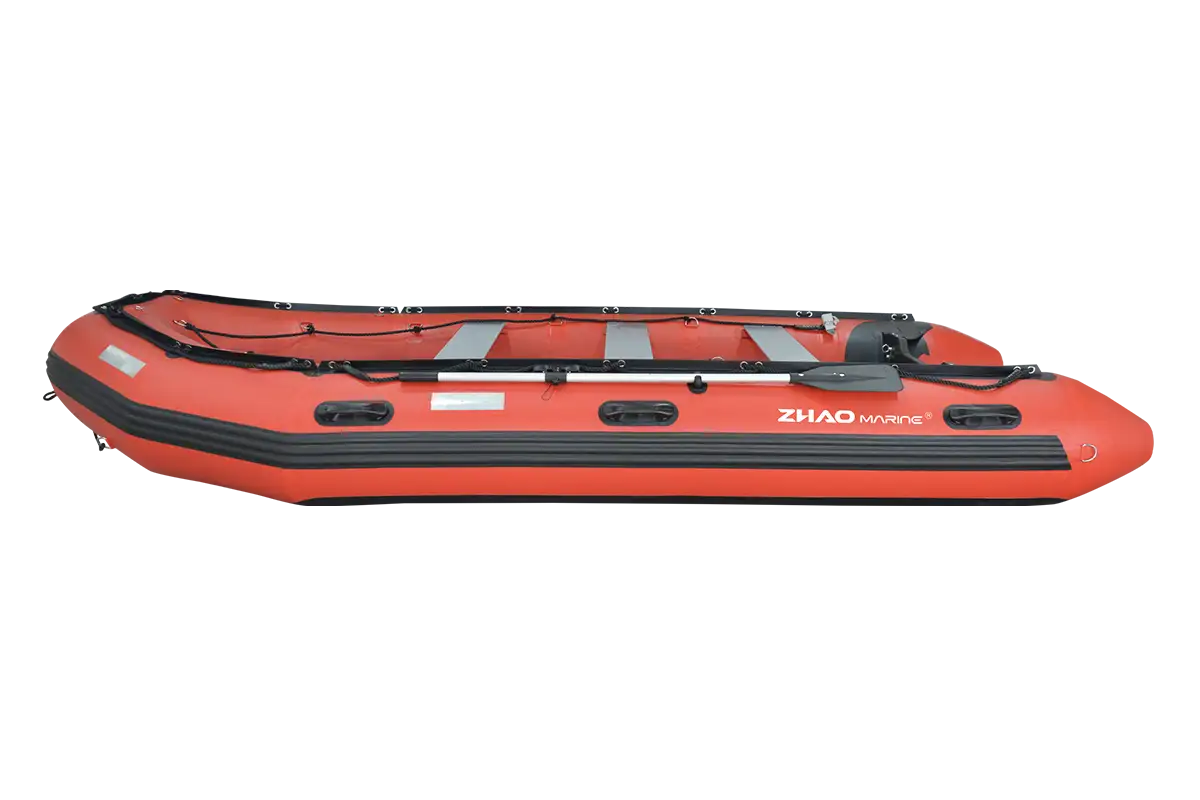

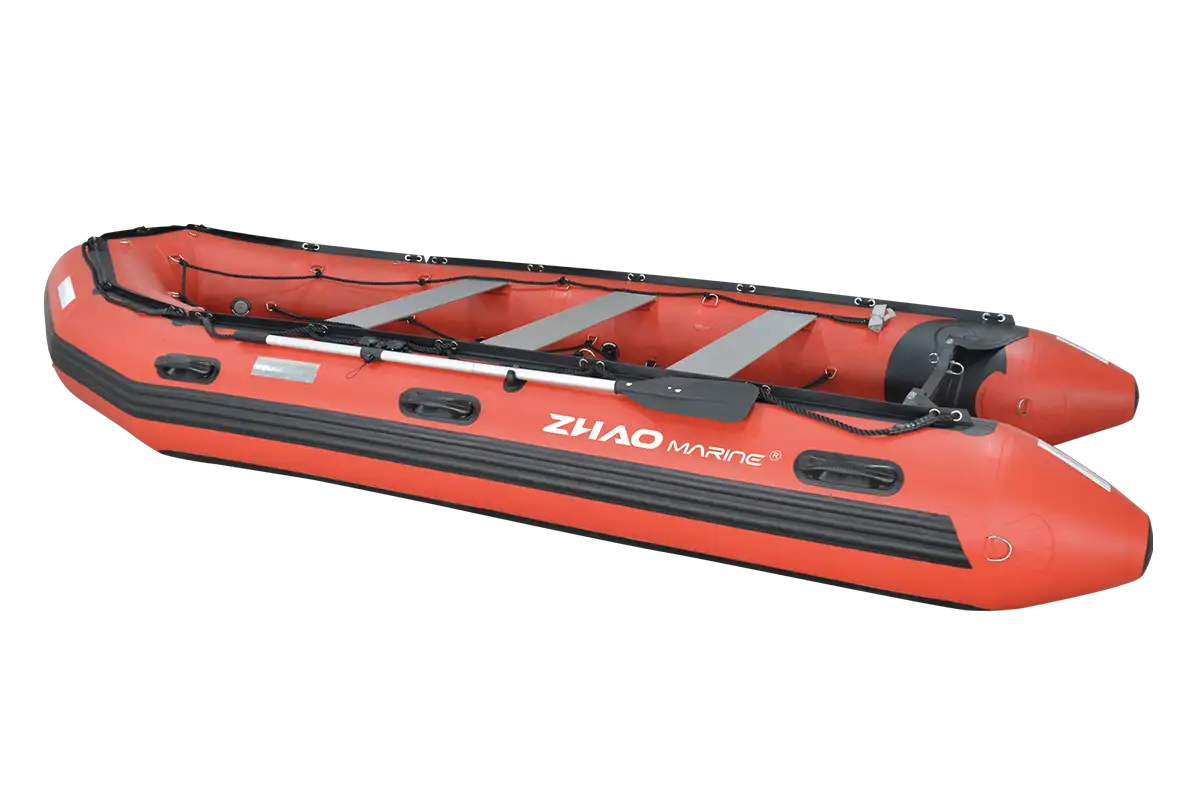

An inflatable boat with a free bottom board, which can be freely assembled and provides strong stability.
Choose your size in this range：
• ZYA-230 / 7'55"
• ZYA-270 / 8'86"
• ZYA-300 / 9'84"
• ZYA-330 / 10'83"
• ZYA-360 / 11'81"
• ZYA-380 / 12'47"
• ZYA-420 / 13'78"
• ZYA-470 / 15'42"
Optional range of baseplates：
• Aluminum alloy bottom
• Inflatable bottom
• SLAT bottom
Engine:
Outboard，1 engine
Deck:
Open Deck，Removable chair board
Sailing Program:
Yacht tenders，Fishing boat
Materials:
PVC or Hypalon，Aluminum
People Capacity:
2 to 8 Persons
Size:
230CM to 470CM / 7'55" to 15'42"
STANDARD PACKAGE
• Oars
• Double action pump
• Portable bag
• Repair kit
• 1 Wooden chair board(Below 300CM / 9'84" )
• 2 Wooden chair board (Above 320CM / 10'5")
OPTIONAL
• Electric inflation pump
• Aluminum alloy chair board
• PVC anchor base
• Aluminum alloy anchor base
• Bow bag
• Seat bag
Brand:
Design Category:
C
Detail Display
SPECIFICATIONS
- Imperial
- Metric
-
- Commodity name: ZYA
- 设计类别: C
- 总长: 7'55" to 15'42"
- 总宽: 4'33" to 6'23"
- 重量: 83.78 to 211.64lbs
- 马力: /
- 油箱: /
- 最大载人数: 2 to 8
ZYA
ZYA-230
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
7'55"
4'76"
4'33"
1'97"
1'18"
Maximum People
Net Weight
Maximum Load
Air chambers
2
83.78lbs
771.62lbs
3+1
ZYA-270
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
8'86"
5'74"
4'95"
2'23"
1'38"
Maximum People
Net Weight
Maximum Load
Air chambers
3
105.82lbs
1067.04lbs
3+1
ZYA-300
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
9'84"
6'23"
4'95"
2'23"
1'38"
Maximum People
Net Weight
Maximum Load
Air chambers
4
114.64lbs
1124.36lbs
3+1
ZYA-330
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
10'83"
7'38"
4'95"
2'23"
1'38"
Maximum People
Net Weight
Maximum Load
Air chambers
5
123.46lbs
1322.77lbs
3+1
ZYA-360
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
11'81"
8'20"
5'58"
2'62"
1'48"
Maximum People
Net Weight
Maximum Load
Air chambers
5+1
167.55lbs
1520lbs
3+1
ZYA-380
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
12'47"
8'86"
5'58"
2'62"
1'48"
Maximum People
Net Weight
Maximum Load
Air chambers
6
171.96lbs
1602.76lbs
3+1
ZYA-420
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
13'78"
9'35"
6'23"
2'95"
1'64"
Maximum People
Net Weight
Maximum Load
Air chambers
7
193.99lbs
2396.42lbs
3+1
ZYA-470
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
15'42"
11'
6'23"
2'95"
1'64"
Maximum People
Net Weight
Maximum Load
Air chambers
8
211.64lbs
2425.08lbs
4+1
-
ZYA-230
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
230CM
145CM
132CM
60CM
36CM
Maximum People
Net Weight
Maximum Load
Air chambers
2
38KG
350KG
3+1
ZYA-270
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
270CM
175CM
151CM
68CM
42CM
Maximum People
Net Weight
Maximum Load
Air chambers
3
48KG
484KG
3+1
ZYA-300
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
300CM
190CM
151CM
68CM
42CM
Maximum People
Net Weight
Maximum Load
Air chambers
4
52KG
510KG
3+1
ZYA-330
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
330CM
225CM
151CM
68CM
42CM
Maximum People
Net Weight
Maximum Load
Air chambers
5
56KG
600KG
3+1
ZYA-360
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
360CM
250CM
170CM
80CM
45CM
Maximum People
Net Weight
Maximum Load
Air chambers
5+1
76KG
689KG
3+1
ZYA-380
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
380CM
270CM
170CM
80CM
45CM
Maximum People
Net Weight
Maximum Load
Air chambers
6
78KG
727KG
3+1
ZYA-420
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
420CM
285CM
190CM
90CM
50CM
Maximum People
Net Weight
Maximum Load
Air chambers
7
88KG
1087KG
3+1
ZYA-470
Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
470CM
335CM
190CM
90CM
50CM
Maximum People
Net Weight
Maximum Load
Air chambers
8
96KG
1100KG
4+1
