DLX-700

Home page

●

DLX-700

23'06"

Overall Length

9'51"

Overall Width

2204.62lbs

Net Weight

Maximum People

35.2gal

Fuel Tank

200HP /147.1KW

Max HP / KW

INTRODUCE

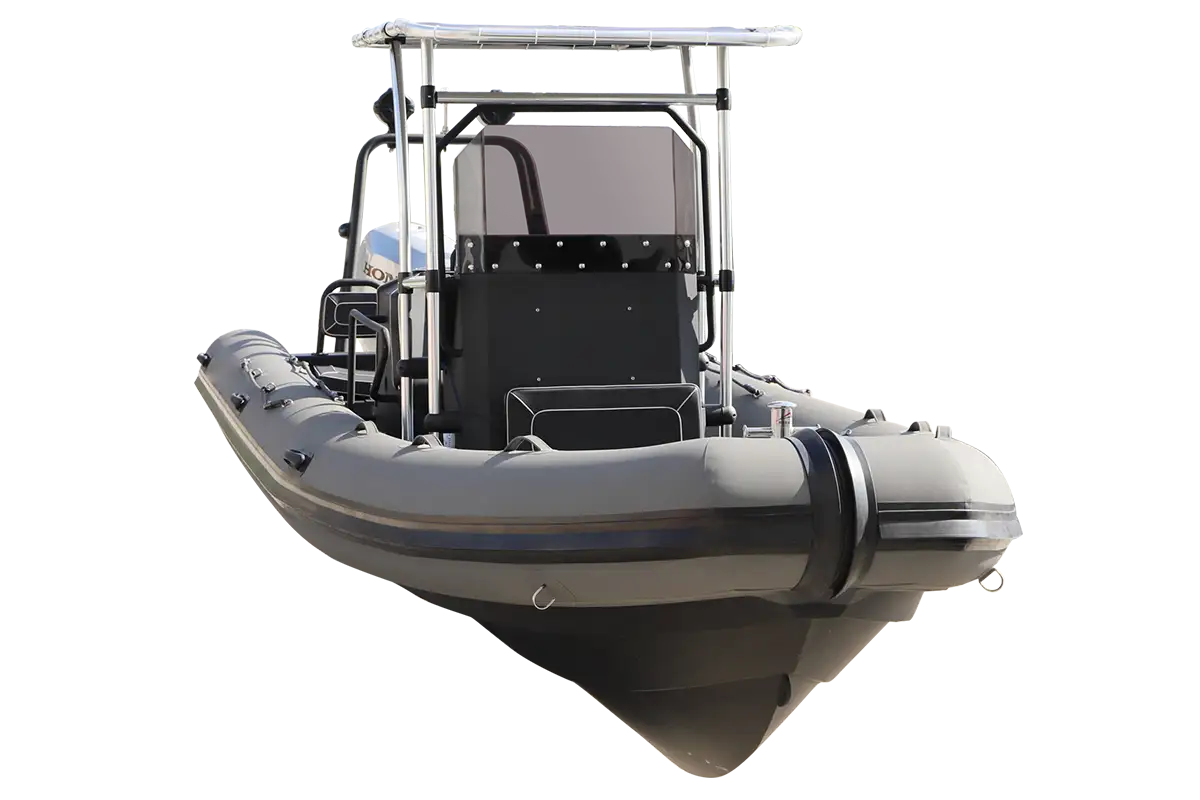

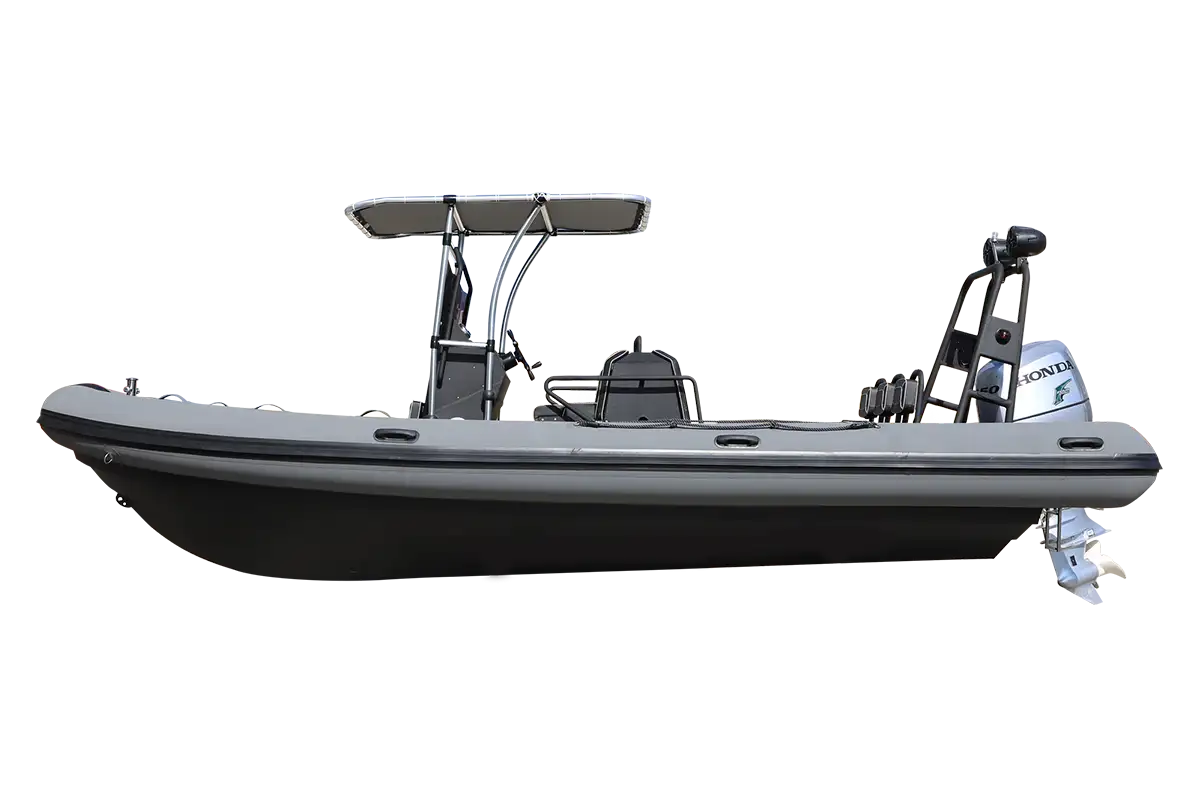

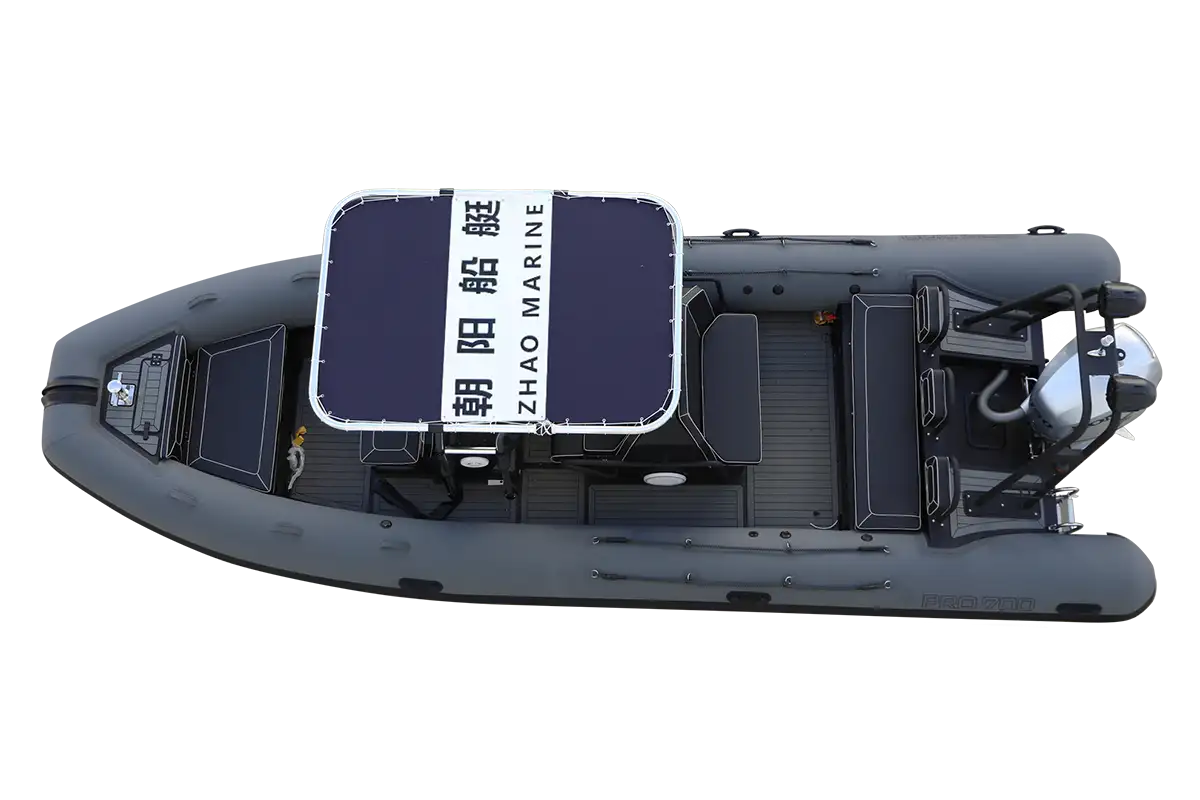

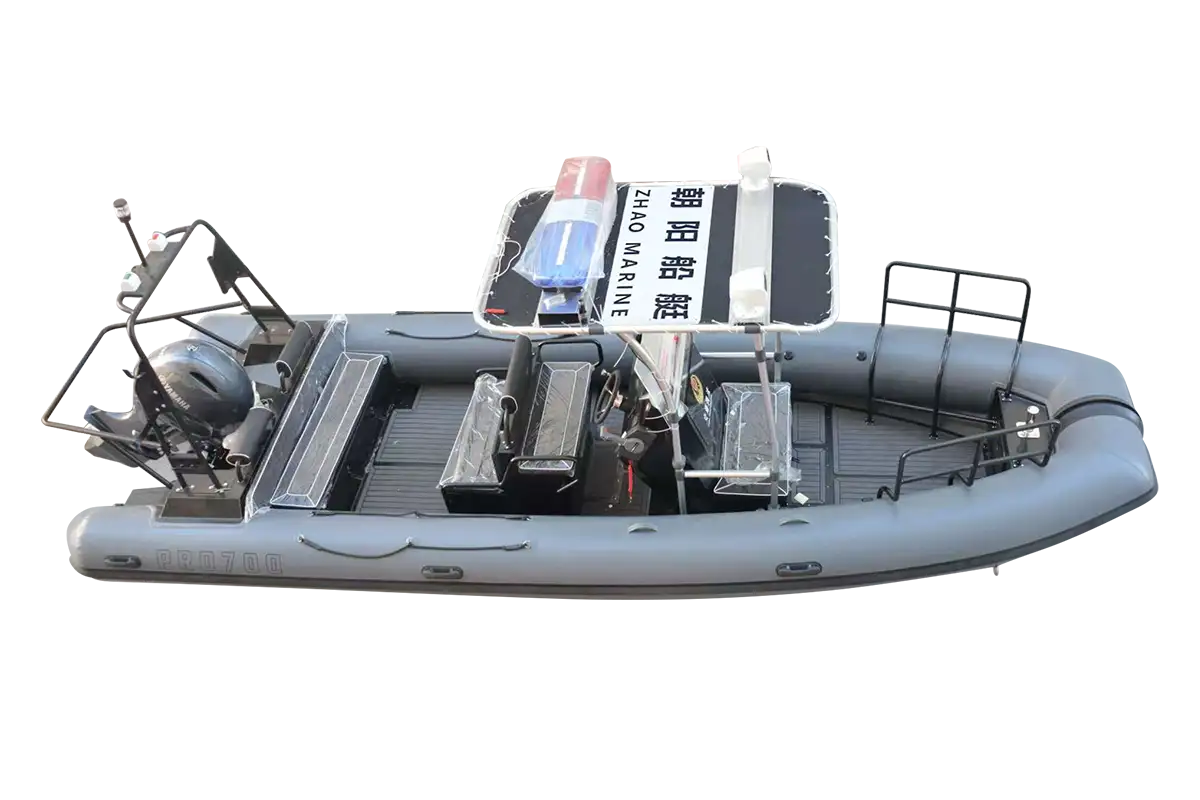

This is a large vessel, approximately 23 feet in length. The main body of the boat is made of gray inflatable material, featuring smooth lines and a modern design. It has a logo printed on the side and is equipped with multiple seats. The driver's seat is arranged reasonably, and it is equipped with steering wheel and other control devices, making it easy for the driver to operate. The boat is equipped with metal handrails and sunshade, etc. The metal handrails are convenient for passengers to grab and enhance safety; the sunshade can shield the passengers from the sun to a certain extent, improving the comfort of the ride. In addition, the boat may be equipped with other auxiliary equipment to meet different water activity needs.

Engine：

Outboard , 1 engine

Deck：

Open Deck , Bow storage compartment , Driver's seat , Stern storage compartment

Sailing Program：

Water-skiing boats , Touring boats , Sea sport boats , Wakeboarding boats , Shuttle Ship

Materials：

Aluminum alloy ship bottom , PVC/Hypalon , 316 stainless steel

STANDARD PACKAGE

• Aluminum alloy hull and keel

• Hypalon/PVC tube with 6 air compartments

• Inflation valves

• Overpressure valves

• High tensile chromated and powder coated aluminum hull

• 150L built in fuel tank system

• Aluminum alloy anchor seat

• EVA floor set(3000 hours of UV resistance)

• Heavy duty rubbing strakes

• Soft cushions set

• Aluminum alloy suspension points and aluminum alloy traction eyes

• Bow storage compartment

Bravo/Ceredi handle

• Stern storage compartment

• Rear diving paltform

• 1cm PE board

• Aluminum alloy tail wing

• Auto bilge pump

• Battery switch

• Zinc block

• Aluminum oar

• Foot pump

• Repair kit

OPTIONAL

• 316 stainless steel anchor

• Electric windlass

• 316 stainless steel anchor chain

• 316 stainless steel C shape ladder

• Console

• Driver's Seat

• Roll bar

• Extra protection for tube bottom

• Real teak wood floor set

• Hydraulic steering system

• Steering wheel

• Keel guard

• Trailer

• Outboard engine

• Compass

• VHF set

• GPS

• Blue tooth speaker system

• Searching light

• Sunshade

• Battery electric pump

• Wireless charging

• Underwater light

• Navigation lights

• Deck lights

• Inflatable life jacket

• Water-based fire extinguisher

• Sundeck

Brand:

ZHAO MARINE

Design Category:

Detail Display

SPECIFICATIONS

Imperial
Metric

Commodity name: DLX-700
设计类别: C
总长: 23'06"
总宽: 9'51"
重量: 2204.62lbs
马力: 200HP /147.1KW
油箱: 35.2gal
最大载人数: 13

DLX-640

Overall Length	Internal Length	Overall Width	Internal Width	Tube Diameter
23'06"	14'47"	9'51"	4'92"	1'71"
Boat only Weight	Maximum Load	Max HP / KW	Fuel Tank	Maximum People
2204.62lbs	3968.32lbs	200HP / 147.1KW	35.2gal	13

Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
703CM
441CM
290CM
150CM
52CM
Boat only Weight
Maximum Load
Max HP / KW
Fuel Tank
Maximum People
1000KG
1800KG
200HP / 147.1KW
160L
13
