ZYA-400JLYF

Home page

●

ZYA-400JLYF

Easily-righting rapids rescue boat

13'1.5"

Overall Length

8'10.5"

Overall Width

231.49lbs

Net Weight

Maximum People

Fuel Tank

30HP /22.37KW

Max HP / KW

INTRODUCE

Suitable for various water environments, such as shorelines, rapids, inland rivers, urban waterlogging, transportation liaison, emergency training, transportation of disaster stricken people or materials, emergency rescue training, and other tasks.

Features：

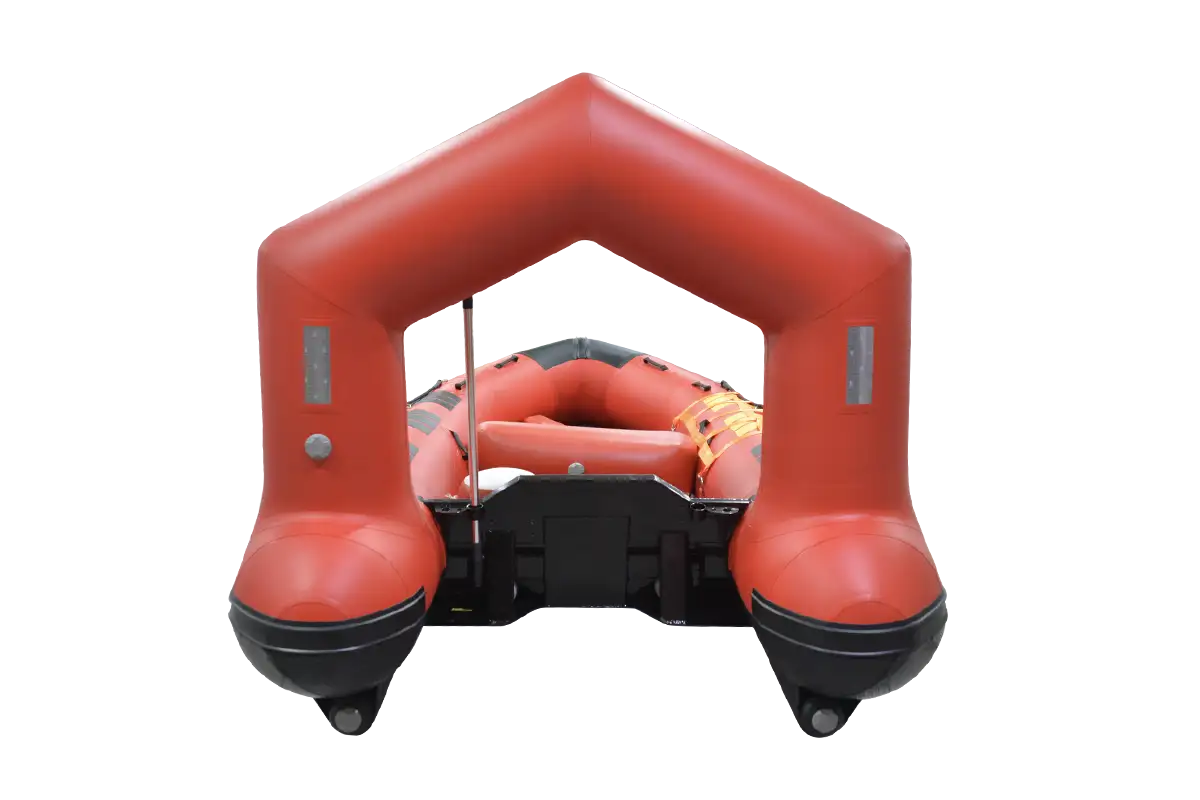

The device with a rear arch shape can prevent overturning and protect the engine from water ingress. The ship has a shallow draft at the bottom, light weight, flexibility, a pointed bow, a V-shaped front and flat rear of the bottom, and good wave breaking performance. Double nozzles make the ship more stable and resistant to capsizing. The aluminum magnesium alloy tailboard can withstand greater thrust from the engine and is equipped with a high-low tailboard converter. The high and low tailboards can be used freely, with lifting rings and external engine fixing rings for lifting and fixing the external engine. The bottom plate has foot fixing devices to prevent personnel from being easily thrown out of the ship.

CONFIGURATION

STANDARD PACKAGE:

• Emergency oars

• Stretchable rescue hook

• Double action pump

• Boarding ladder

• Repair kit

• Foldable and inflatable stool

• Inflatable stool

• Portable bag

• Inflatable salvage bar

OPTIONAL:

• Electric inflation pump

• High and low stern board switching device

Brand:

ZHAO MARINE

Design Category:

Detail Display

SPECIFICATIONS

Imperial
Metric

Commodity name: ZYA-400JLYF
设计类别: C
总长: 13'1.5"
总宽: 8'10.5"
重量: 231.49lbs
马力: 30HP /22.37KW
油箱: /
最大载人数: 8
救援艇概要: Easily-righting rapids rescue boat

ZYA-400JLYF

Overall Length	Internal Length	Overall Width	Internal Width	Tube Diameter
13'1.5"	8'10.5"	6'2.8"	2'11.4"	1'7.7"
Air chambers	Boat only Weight	Maximum Load	Max HP / KW	Maximum People
5 + 4	231.49lbs	2381bls	30HP / 22.37KW	8

Overall Length
Internal Length
Overall Width
Internal Width
Tube Diameter
400cm
270cm
190cm
90cm
50cm
Air chambers
Boat only Weight
Maximum Load
Max HP / KW
Maximum People
5 + 4
105KG
1080kg
30HP / 22.37KW
8
